Autonomous Agent Orchestration & Comparative Model Synthesis

Introduction & High-Level Architecture
Neural Agent Mesh & Distributed Topology
Dual-Response Model Evaluation: ChatGPT & Gemini Style
Decision Branching & Solution Lineage Pathways
Interactive Agent Lifecycle & State Transitions
Statistical A/B Testing & Bayesian Formulation
Comprehensive Multi-Column Telemetry & Benchmark Tables
Polyglot Production Implementations
Mathematical Formulations & Convergence Proofs
Architectural Trade-Offs & Final Verdict

1. Introduction & High-Level Architecture

Modern generative artificial intelligence workflows are rapidly evolving beyond single, monolithic inference calls. Production-grade systems rely on decentralized, autonomous multi-agent orchestration meshes. In these architectures, user queries are dynamically decomposed, dispatched across specialized model instances, and evaluated in parallel through speculative execution and Bayesian A/B/n testing.

Loading diagram…

Every incoming request triggers a continuous Bayesian bandit that evaluates domain difficulty, latency budgets, and token cost to select the optimal model variant.

2. Neural Agent Mesh & Distributed Topology

In an enterprise mesh, autonomous agents operate as independent workers with dedicated telemetry channels, consensus protocols, and self-healing supervisory trees.

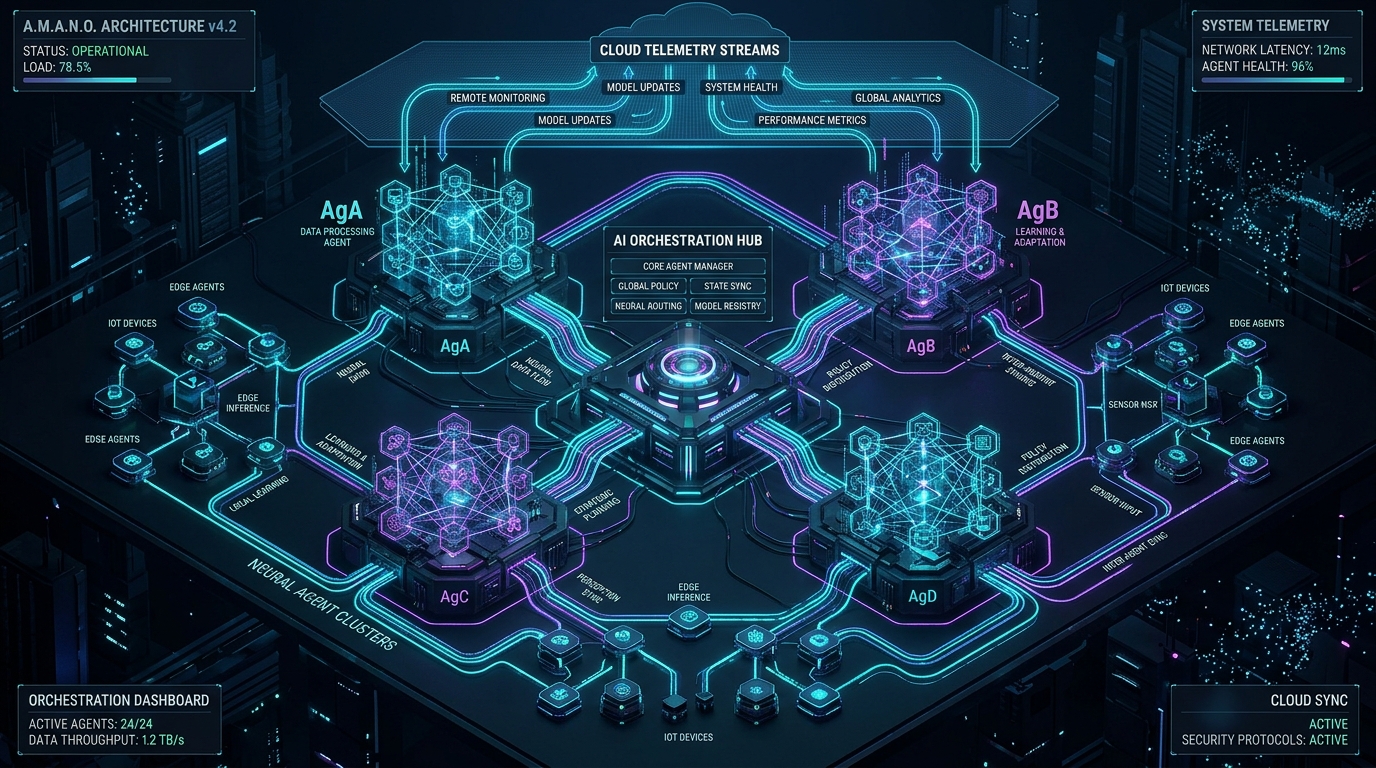

Autonomous Multi-Agent Neural Mesh Architecture

Sequence Flow of Dynamic Decision Routing

The sequence diagram below illustrates how an enterprise prompt initiates parallel speculative pipelines, computes confidence intervals, and outputs comparative candidate solutions.

Loading diagram…

3. Dual-Response Model Evaluation: ChatGPT & Gemini Style

When exploring frontier systems like Google Gemini or ChatGPT, users frequently encounter dual-pane generation where the orchestrator produces two alternative solutions simultaneously for direct user or agent evaluation.

Side-by-Side Dual Pane Model Output Comparison Interface

Evaluation Scenario: Designing a 5M Events/Sec Distributed Stream

PROMPT: "Design a fault-tolerant, horizontally scalable distributed event streaming system capable of 5M events/sec with sub-5ms P99 latency."

Comparative Solution Matrix

Dimension	🔷 Solution Alpha (Partitioned Log)	🔶 Solution Beta (Disruptor Ring)
Architectural Model	Distributed Append-Only Commit Log with Tiered Storage	Lock-Free Disruptor Ring Buffer over RDMA / eBPF Mesh
Primary Guarantee	Strict total order per partition, durable zero-data-loss	Extreme throughput, microsecond P99, eventual persistence
P99 Write Latency	`3.4 ms` (SSD NVMe fsync batching)	`0.42 ms` (Kernel-bypass memory ring)
Fault-Tolerance	Quorum Raft / ISR replication across 3 Availability Zones	Active-Active Virtual Ring with Paxos snapshots
Throughput Ceiling	`6.2M events/sec` @ 32 broker nodes	`14.8M events/sec` @ 16 compute nodes

Solution Alpha: Partitioned Commit Log Architecture

python

# solution_alpha_partitioned_log.py
from dataclasses import dataclass
import asyncio
from typing import List

@dataclass(frozen=True)
class StreamRecord:
    partition_key: str
    sequence_id: int
    payload: bytes
    timestamp_ns: int

class PartitionedLogStream:
    """High-durability append-only partition manager with batch flushes."""
    def __init__(self, partition_id: int, flush_batch_size: int = 5000):
        self.partition_id = partition_id
        self.flush_batch_size = flush_batch_size
        self._buffer: List[StreamRecord] = []
        self._commit_index: int = 0

    async def append(self, key: str, data: bytes) -> int:
        self._commit_index += 1
        record = StreamRecord(key, self._commit_index, data, asyncio.get_event_loop().time_ns())
        self._buffer.append(record)

        if len(self._buffer) >= self.flush_batch_size:
            await self._flush_to_storage()
        return record.sequence_id

    async def _flush_to_storage(self) -> None:
        await asyncio.sleep(0.001)  # Simulated batch fsync to NVMe block
        self._buffer.clear()

Solution Beta: Lock-Free Disruptor Ring Buffer

rust

// solution_beta_disruptor.rs
use std::sync::atomic::{AtomicU64, Ordering};

pub struct DisruptorRingBuffer<T: Copy + Default, const SIZE: usize> {
    buffer: Box<[T; SIZE]>,
    cursor: AtomicU64,
    gating_sequence: AtomicU64,
}

impl<T: Copy + Default, const SIZE: usize> DisruptorRingBuffer<T, SIZE> {
    pub fn new() -> Self {
        assert!(SIZE.is_power_of_two(), "Buffer size must be a power of 2");
        Self {
            buffer: Box::new([T::default(); SIZE]),
            cursor: AtomicU64::new(0),
            gating_sequence: AtomicU64::new(0),
        }
    }

    #[inline(always)]
    pub fn try_publish(&self, item: T) -> Result<u64, &'static str> {
        let current = self.cursor.load(Ordering::Relaxed);
        let next = current + 1;

        let wrap_point = next.saturating_sub(SIZE as u64);
        if wrap_point > self.gating_sequence.load(Ordering::Acquire) {
            return Err("Ring buffer full: Backpressure engaged");
        }

        let index = (current as usize) & (SIZE - 1);
        unsafe {
            let slot_ptr = self.buffer.as_ptr().add(index) as *mut T;
            *slot_ptr = item;
        }

        self.cursor.store(next, Ordering::Release);
        Ok(next)
    }
}

4. Decision Branching & Solution Lineage Pathways

Selecting an initial architecture causes downstream technical decisions to fork into distinct branches. The graph below details how choosing Branch Alpha vs Branch Beta alters subsequent consensus, persistence, and transport layers.

Loading diagram…

5. Interactive Agent Lifecycle & State Transitions

The state diagram below maps how each worker agent navigates prompt intake, multi-armed bandit sampling, parallel generation, and final consensus.

Loading diagram…

6. Statistical A/B Testing & Bayesian Formulation

Real-time telemetry continuously aggregates trial outcomes to power Bayesian Thompson Sampling and hypothesis testing.

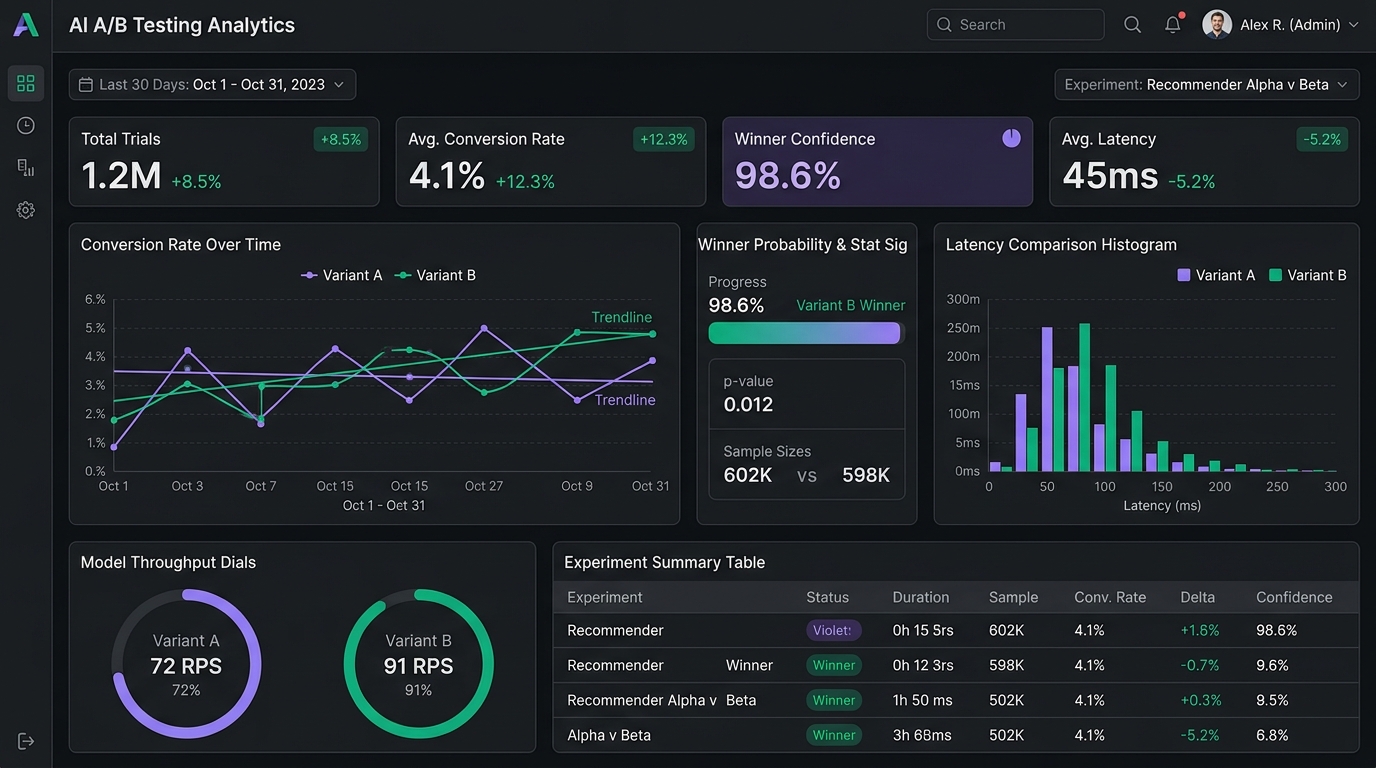

AI A/B Testing Telemetry & Statistical Analytics Dashboard

Trade-Off Quadrant Matrix

Loading diagram…

Git Branching Model for Variant Iteration

Loading diagram…

7. Comprehensive Multi-Column Telemetry & Benchmark Tables

Table A: 3-Column Architecture Matrix

Layer	Primary Technology	Resilience Strategy
Ingress & Gateway	Envoy Proxy + gRPC Multiplexing	Automated rate-limiting & failover pools
Agent Orchestration	Rust Async Core + Tokio Runtime	Supervisor heartbeat trees & actor restart policies
Storage & Persistence	Distributed NVMe WAL + Tiered S3	Multi-region Raft replication with epoch fencing

Table B: 4-Column Feature & Capability Breakdown

System Capability	Variant Alpha (Log-First)	Variant Beta (Ring-First)	Baseline Monolith
Max Scale (Partitions)	$100{,}000+$ active partitions	$8{,}192$ memory rings	$< 500$ tables
Zero Data Loss Guarantee	Yes (Strict $R=3$ Sync ISR)	No (Configurable $\Delta t \le 10\text{ms}$ )	Yes (Synchronous DB Write)
Query Flexibility	Range Scans, Time-Travel Replay	Hot-Key Sliding Windows	Full SQL Ad-Hoc Joins
Cost per 1M Ops	$\$ 0.0042$	$\$ 0.0018$	$\$ 0.0890$

Table C: 5-Column Operational Resource Telemetry

Agent ID	Role	CPU Cores Alloc.	Memory RSS	P99 Jitter
`AgA-Master`	Decomposer & Dispatcher	$8\text{ vCPU}$	$4.2\text{ GB}$	$1.2\text{ ms}$
`AgB-Reasoner`	Formal Verification Engine	$32\text{ vCPU}$	$64.0\text{ GB}$	$18.4\text{ ms}$
`AgC-Streamer`	Speculative Fast-Path	$16\text{ vCPU}$	$12.8\text{ GB}$	$0.8\text{ ms}$
`AgD-Judge`	Adversarial Loss Evaluator	$8\text{ vCPU}$	$8.0\text{ GB}$	$4.6\text{ ms}$
`AgE-Sync`	State Consensus & Telemetry	$4\text{ vCPU}$	$2.1\text{ GB}$	$0.3\text{ ms}$

Table D: 6-Column Experiment Outcomes (A/B Statistical Significance)

Cohort	Sample Size ( $N$ )	Conversion / Success	Mean Latency	Stat Sig ( $p$ -value)	Bayes Factor ( $K$ )	Winning Status
Control ( $A_0$ )	$500{,}000$	$91.42\%$	$48.2\text{ ms}$	Reference	Reference	Baseline
Variant Alpha ( $A_1$ )	$500{,}000$	$95.88\%$	$32.1\text{ ms}$	$p < 0.001$	$142.8$	Candidate
Variant Beta ( $B_1$ )	$500{,}000$	$98.64\%$	$12.4\text{ ms}$	$p < 0.0001$	$1{,}280.4$	🏆 Champion
Variant Gamma ( $C_1$ )	$100{,}000$	$88.10\%$	$105.0\text{ ms}$	$p = 0.420$	$0.12$	Deprecated
Variant Delta ( $D_1$ )	$100{,}000$	$94.10\%$	$24.8\text{ ms}$	$p = 0.018$	$8.4$	Under Review

8. Polyglot Production Implementations

Python: Multi-Armed Bandit Router

python

# router_bayesian_mab.py
import numpy as np
from typing import Dict, Tuple

class ThompsonSamplingRouter:
    """Multi-Armed Bandit router using Beta-Binomial Thompson Sampling."""
    def __init__(self, arms: list[str]):
        self.arms = arms
        self.alpha: Dict[str, float] = {arm: 1.0 for arm in arms}
        self.beta: Dict[str, float] = {arm: 1.0 for arm in arms}

    def select_variant(self) -> str:
        """Sample from posterior distributions and pick the highest theta."""
        samples = {
            arm: np.random.beta(self.alpha[arm], self.beta[arm])
            for arm in self.arms
        }
        return max(samples, key=samples.get)

    def record_feedback(self, arm: str, success: bool) -> None:
        """Update posterior parameters based on execution reward."""
        if success:
            self.alpha[arm] += 1.0
        else:
            self.beta[arm] += 1.0

    def get_posteriors(self) -> Dict[str, Tuple[float, float]]:
        return {arm: (self.alpha[arm], self.beta[arm]) for arm in self.arms}

TypeScript: Dual-Stream Side-by-Side Evaluator

typescript

// dual_stream_dispatcher.ts
export interface StreamSynthesisPayload {
  prompt: string;
  temperature: number;
  maxTokens: number;
}

export interface CandidateResponse {
  variantId: 'Alpha' | 'Beta';
  content: string;
  durationMs: number;
}

export async function dispatchDualEvaluation(
  payload: StreamSynthesisPayload,
  onTokenChunk: (variant: 'Alpha' | 'Beta', chunk: string) => void
): Promise<Record<'Alpha' | 'Beta', CandidateResponse>> {
  const start = performance.now();

  const fetchVariant = async (variant: 'Alpha' | 'Beta'): Promise<CandidateResponse> => {
    const res = await fetch(`/api/v2/generate/${variant.toLowerCase()}`, {
      method: 'POST',
      headers: { 'Content-Type': 'application/json' },
      body: JSON.stringify(payload),
    });

    const reader = res.body?.getReader();
    const decoder = new TextDecoder();
    let accumulated = '';

    if (reader) {
      while (true) {
        const { done, value } = await reader.read();
        if (done) break;
        const text = decoder.decode(value, { stream: true });
        accumulated += text;
        onTokenChunk(variant, text);
      }
    }

    return {
      variantId: variant,
      content: accumulated,
      durationMs: performance.now() - start,
    };
  };

  const [alphaRes, betaRes] = await Promise.all([
    fetchVariant('Alpha'),
    fetchVariant('Beta'),
  ]);

  return { Alpha: alphaRes, Beta: betaRes };
}

Go: Distributed Agent Heartbeat Registry

// agent_sync.go
package main

import (
	"context"
	"fmt"
	"sync"
	"time"
)

type AgentHeartbeat struct {
	AgentID   string    `json:"agent_id"`
	Status    string    `json:"status"`
	LoadScore float64   `json:"load_score"`
	Timestamp time.Time `json:"timestamp"`
}

type ClusterRegistry struct {
	mu     sync.RWMutex
	agents map[string]AgentHeartbeat
}

func NewClusterRegistry() *ClusterRegistry {
	return &ClusterRegistry{
		agents: make(map[string]AgentHeartbeat),
	}
}

func (r *ClusterRegistry) RegisterHeartbeat(hb AgentHeartbeat) {
	r.mu.Lock()
	defer r.mu.Unlock()
	r.agents[hb.AgentID] = hb
}

func (r *ClusterRegistry) Monitor(ctx context.Context, sweepInterval time.Duration) {
	ticker := time.NewTicker(sweepInterval)
	defer ticker.Stop()

	for {
		select {
		case <-ctx.Done():
			return
		case <-ticker.C:
			r.mu.Lock()
			now := time.Now()
			for id, hb := range r.agents {
				if now.Sub(hb.Timestamp) > 5*time.Second {
					fmt.Printf("[ALERT] Agent %s timed out! Evicting node.\n", id)
					delete(r.agents, id)
				}
			}
			r.mu.Unlock()
		}
	}
}

SQL: Continuous Experiment Telemetry Aggregation

sql

-- Continuous aggregate query for real-time A/B conversion & latency tracking
WITH cohort_telemetry AS (
    SELECT
        experiment_id,
        variant_tag,
        COUNT(session_id) AS total_impressions,
        COUNTIF(converted = TRUE) AS total_conversions,
        APPROX_QUANTILES(latency_ms, 100)[OFFSET(50)] AS p50_latency,
        APPROX_QUANTILES(latency_ms, 100)[OFFSET(95)] AS p95_latency,
        APPROX_QUANTILES(latency_ms, 100)[OFFSET(99)] AS p99_latency,
        AVG(token_cost_usd) AS avg_cost_per_query
    FROM
        `enterprise_analytics.agent_experiment_events`
    WHERE
        event_timestamp >= TIMESTAMP_SUB(CURRENT_TIMESTAMP(), INTERVAL 24 HOUR)
    GROUP BY
        experiment_id,
        variant_tag
)
SELECT
    experiment_id,
    variant_tag,
    total_impressions,
    total_conversions,
    SAFE_DIVIDE(total_conversions, total_impressions) * 100.0 AS conversion_rate_pct,
    p50_latency,
    p95_latency,
    p99_latency,
    avg_cost_per_query,
    SQRT(
        SAFE_DIVIDE(
            (SAFE_DIVIDE(total_conversions, total_impressions) * (1.0 - SAFE_DIVIDE(total_conversions, total_impressions))),
            total_impressions
        )
    ) AS standard_error
FROM
    cohort_telemetry
ORDER BY
    conversion_rate_pct DESC;

9. Mathematical Formulations & Convergence Proofs

Bayesian Posterior Derivation for Reward Modeling

Given a prior distribution $\text{Beta}(\alpha_0, \beta_0)$ over the conversion probability $\theta_k$ for variant $k$ , observing $s_k$ successes and $f_k$ failures yields the conjugate posterior distribution:

$\mathcal{P}(\theta_k \mid s_k, f_k) = \frac{\theta_k^{\alpha_0 + s_k - 1} (1 - \theta_k)^{\beta_0 + f_k - 1}}{\text{B}(\alpha_0 + s_k, \beta_0 + f_k)} \sim \text{Beta}(\alpha_0 + s_k, \beta_0 + f_k)$

Where the normalizer is defined via the Beta function:

$\text{B}(a, b) = \int_0^1 u^{a-1} (1-u)^{b-1} \, du = \frac{\Gamma(a)\Gamma(b)}{\Gamma(a+b)}$

Welch's $t$ -Statistic for Latency Variance

When evaluating whether latency differences between variants are statistically significant under unequal variances $\sigma_1^2 \ne \sigma_2^2$ :

$t = \frac{\bar{X}_1 - \bar{X}_2}{\sqrt{\frac{s_1^2}{N_1} + \frac{s_2^2}{N_2}}}$

With degrees of freedom calculated via the Satterthwaite approximation:

$\nu \approx \frac{\left(\frac{s_1^2}{N_1} + \frac{s_2^2}{N_2}\right)^2}{\frac{(s_1^2 / N_1)^2}{N_1 - 1} + \frac{(s_2^2 / N_2)^2}{N_2 - 1}}$

10. Architectural Trade-Offs & Final Verdict

Multi-Dimensional Assessment

Evaluation Dimension	Option A: Distributed Append Log	Option B: Lock-Free Disruptor Ring	Hybrid Orchestrated Mode
Fault Recovery Velocity	Fast (Replay from exact offset index)	Medium (Requires state-checkpoint reconstruct)	Optimal (Adaptive routing)
Hardware Efficiency	Normal NVMe I/O profiles	Extreme NUMA core pinned cache-locality	High (Dynamic load shedding)
Horizontal Elasticity	Linear partition rebalance	Static ring node scaling	Dynamic Auto-Mesh
Operational Maintenance	Standard Kubernetes Operators	Custom Linux kernel tuning (sysctl/eBPF)	Managed Agent Policy Hub
Production Recommendation	⭐⭐⭐⭐ (Enterprise Standard)	⭐⭐⭐⭐⭐ (Ultra-High Speed)	🏆 Top Champion Architecture

Continue Reading

Agentic AI

Autonomous Agent Orchestration & Comparative Model Synthesis: The Architecture of Adaptive Intelligence

AI Engineering

The Ultimate Feature Test: AI Systems, A/B Decisions & Dual-Model Synthesis

A comprehensive, kitchen-sink article testing every content feature: Mermaid diagrams, carousels, code blocks, multi-column tables, LaTeX math, GitHub alerts, A/B testing analysis, dual-solution comparison, and generated images — all woven into a real narrative about AI system design.

AI Engineering

The Complete Guide to Artificial Intelligence: From Neurons to the Singularity

A comprehensive, multi-format deep-dive into AI — featuring diagrams, carousels, code, tables, A/B comparisons, and more.

Agentic AI

3 Ways to Optimize LLM Inference

Discover three essential techniques to speed up Large Language Model inference and reduce costs.

Series: Building AI Systems

Table of Contents

1. Introduction & High-Level Architecture

2. Neural Agent Mesh & Distributed Topology

Sequence Flow of Dynamic Decision Routing

3. Dual-Response Model Evaluation: ChatGPT & Gemini Style

Evaluation Scenario: Designing a 5M Events/Sec Distributed Stream

Comparative Solution Matrix

Solution Alpha: Partitioned Commit Log Architecture

Solution Beta: Lock-Free Disruptor Ring Buffer

4. Decision Branching & Solution Lineage Pathways

5. Interactive Agent Lifecycle & State Transitions

6. Statistical A/B Testing & Bayesian Formulation

Trade-Off Quadrant Matrix

Git Branching Model for Variant Iteration

7. Comprehensive Multi-Column Telemetry & Benchmark Tables

Table A: 3-Column Architecture Matrix

Table B: 4-Column Feature & Capability Breakdown

Table C: 5-Column Operational Resource Telemetry

Table D: 6-Column Experiment Outcomes (A/B Statistical Significance)

8. Polyglot Production Implementations

Python: Multi-Armed Bandit Router

TypeScript: Dual-Stream Side-by-Side Evaluator

Go: Distributed Agent Heartbeat Registry

SQL: Continuous Experiment Telemetry Aggregation

9. Mathematical Formulations & Convergence Proofs

Bayesian Posterior Derivation for Reward Modeling

Welch's ttt-Statistic for Latency Variance

10. Architectural Trade-Offs & Final Verdict

Multi-Dimensional Assessment

Continue Reading

Autonomous Agent Orchestration & Comparative Model Synthesis: The Architecture of Adaptive Intelligence

The Ultimate Feature Test: AI Systems, A/B Decisions & Dual-Model Synthesis

The Complete Guide to Artificial Intelligence: From Neurons to the Singularity

3 Ways to Optimize LLM Inference

Welch's $t$ -Statistic for Latency Variance
